Download our drawings and specs for more information.

SteadyMax-12ft

SP-SM12FL

SteadyMax-16ft

SP-SM16

SteadyMax-20ft

SP-SM20

SteadyMax-25ft

SP-SM25

SteadyMax Camera Poles

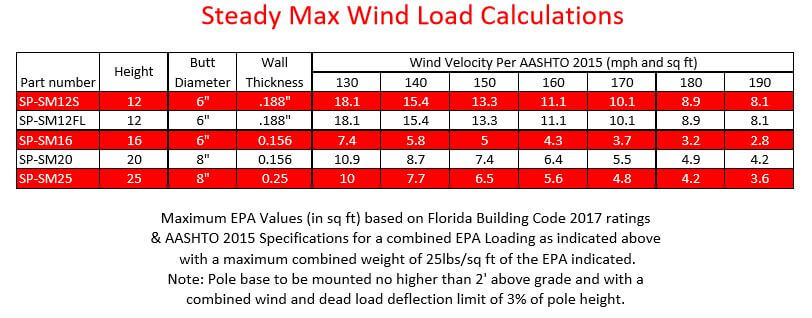

The newest Generation of ultra-steady camera poles from Strong Poles, are the SteadyMax Series of round and tapered camera poles. These poles are engineered to withstand 150mph winds with a full load of cameras, cabinets and sensors – yet are limited to 3% of movement under those conditions.

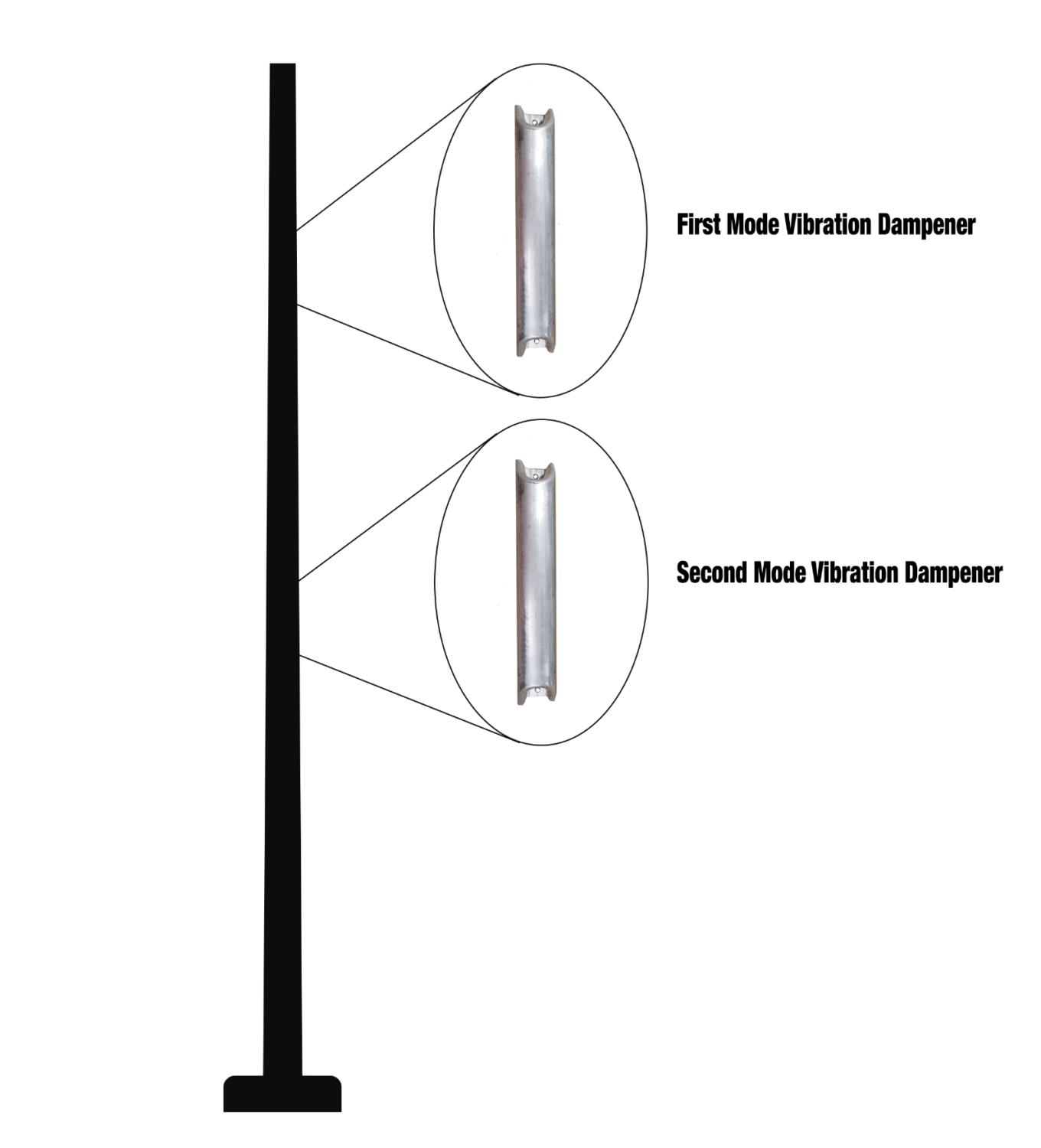

These engineered camera poles also have a Factory-Installed Vibration Suppression System  (Read More)  that consists of two different frequency dampeners that quell high and low frequency vibrations and oscillations that may occur during the life of the pole.

The result is the Steadiest, most rigid pole we have ever built, yet is very lightweight (our 16′ pole weighs only 65 lbs.). This is an amazing Engineering feat to make a pole this steady, yet this lightweight.

It comes with our exclusive 20 Year Warranty, and includes the anchor bolts and anchor template.

• The 20′ SteadyMax Camera Pole is a round tapered pole, and is approximately 8” O.D. at the bottom, and tapers down to 6” O.D. At the top of the pole where the attachment plate is. This pole is heavy wall (.156 thick) construction, using 6063-T6 Aluminum and can be ordered in our usual White or Black (Dark Bronze) Powder Coat finishes. The standard Hand Hole is 18″ from the base, and if you want an extra Hand Hole it is 4′ from the top of the pole.

• The 25′ SteadyMax Camera Pole is tapered from approximately 8” O.D. At the bottom, to 6” O.D. At the top of the pole where the attachment plate is. This pole is a Ultra Heavy Wall (.250 thick – 1/4”) aluminum tapered round pole using 6063-T6 Aluminum, and can be ordered in our usual White or Black (Dark Bronze) Powder Coat finishes. The standard Hand Hole is 18″ from the base, and if you want an extra Hand Hole it is 5′ from the top of the pole.

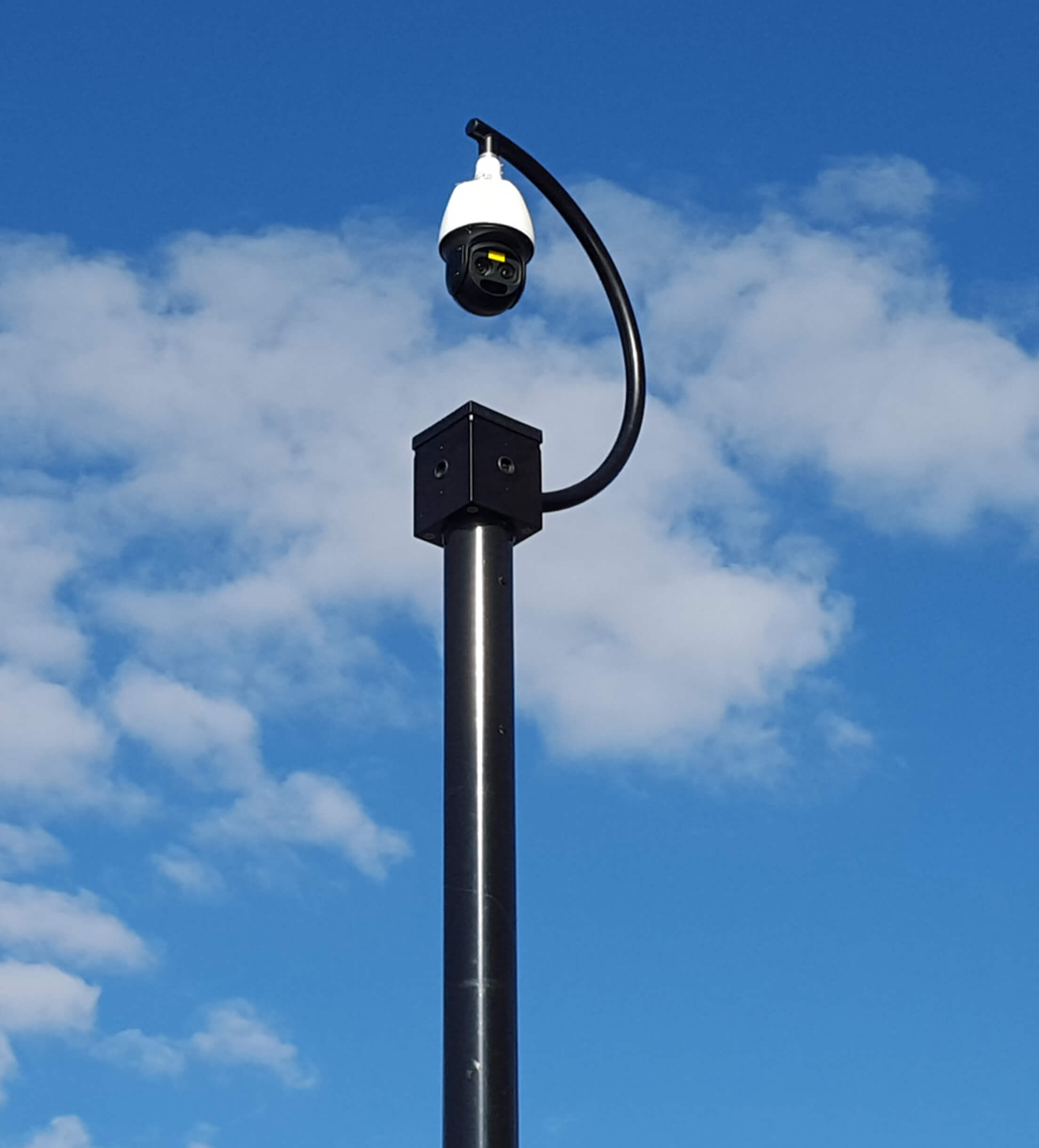

SteadyMax with Birdhouse Mounting Platform, Anttena Mast, Fly-Out Camera Mount, and LED Lighting

SteadyMax with Birdhouse Mounting Platform, Anttena Mast, Fly-Out Camera Mount, and LED Lighting

SteadyMax with Fence Guard

SteadyMax with Birdhouse Mounting Platform, Anttena Mast, Fly-Out Camera Mount, and LED Lighting

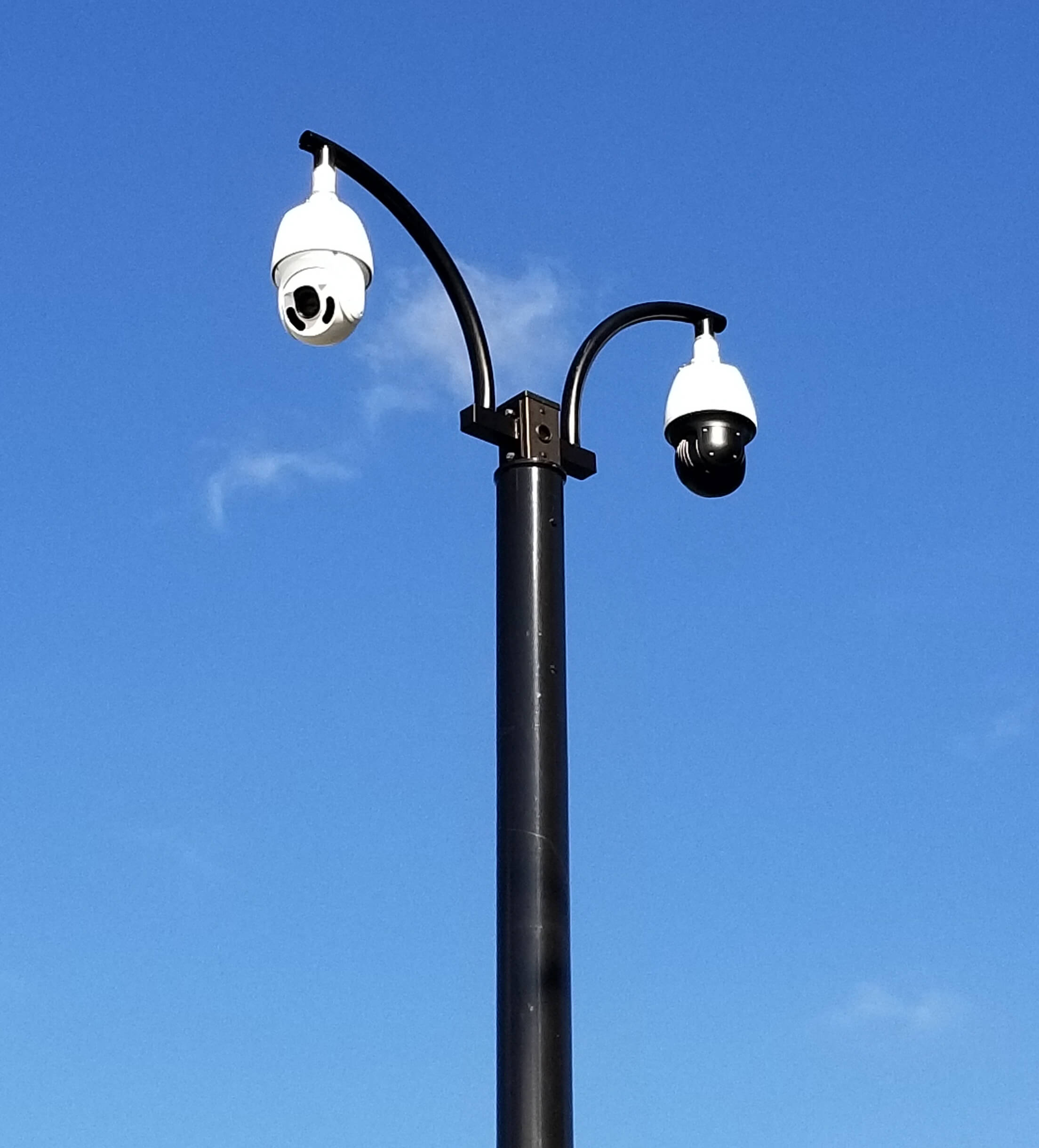

SteadyMax Pole with the Pedestal mount using 2 PTZ Fly-out Mounts

SteadyMax with a Ruff Ride

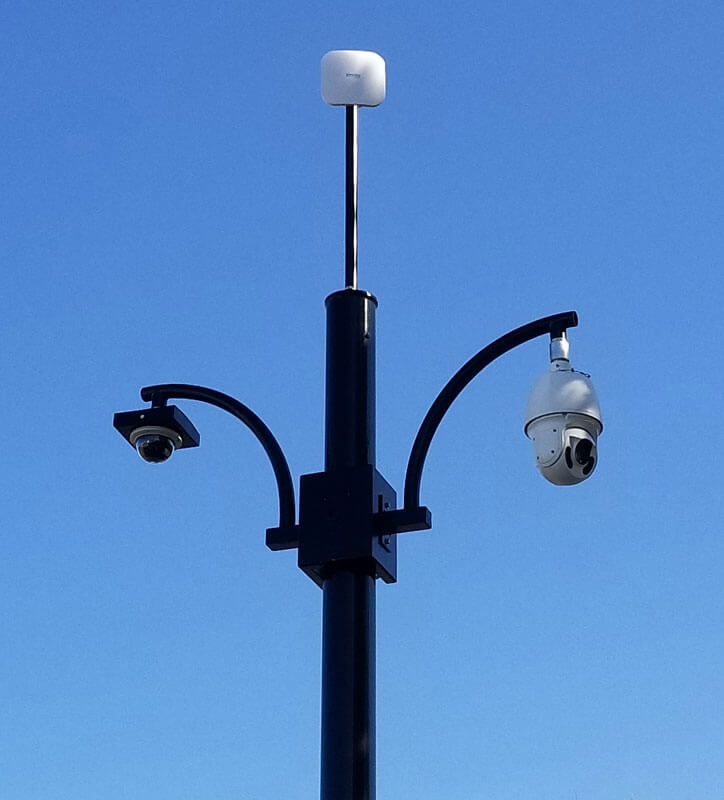

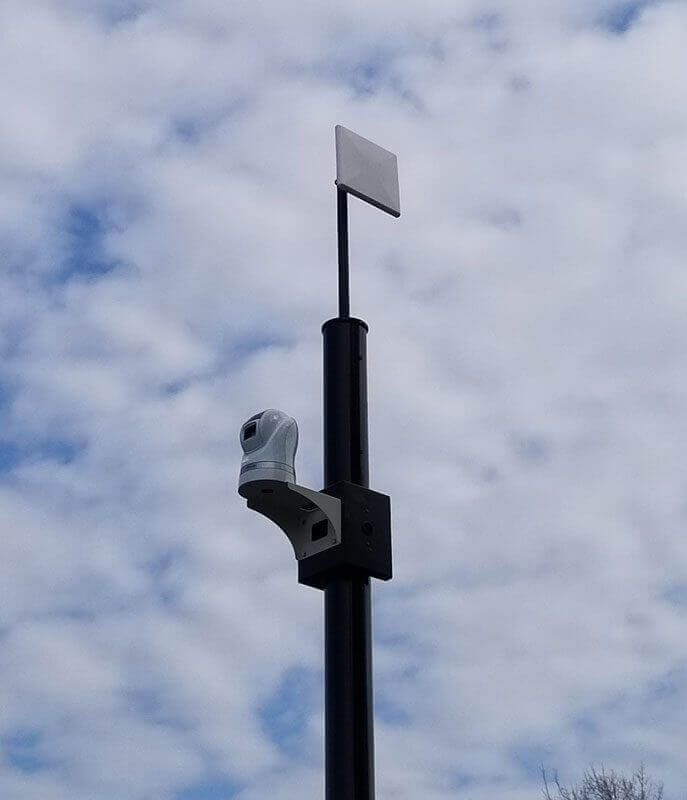

SteadyMax Pole W/Pole Top Mast & Wrap Mounting Platform and 2 PTZ FLYOUT's

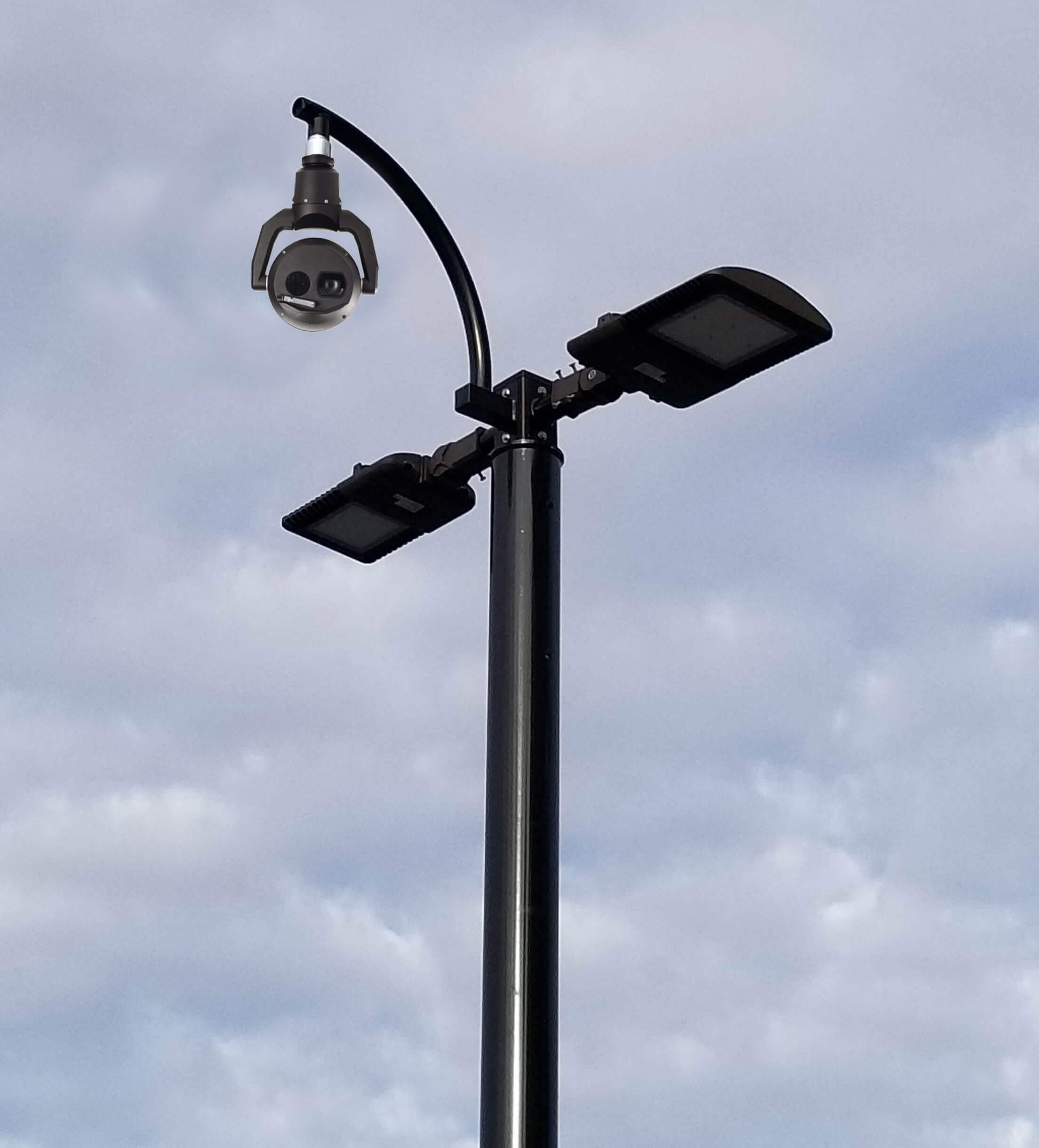

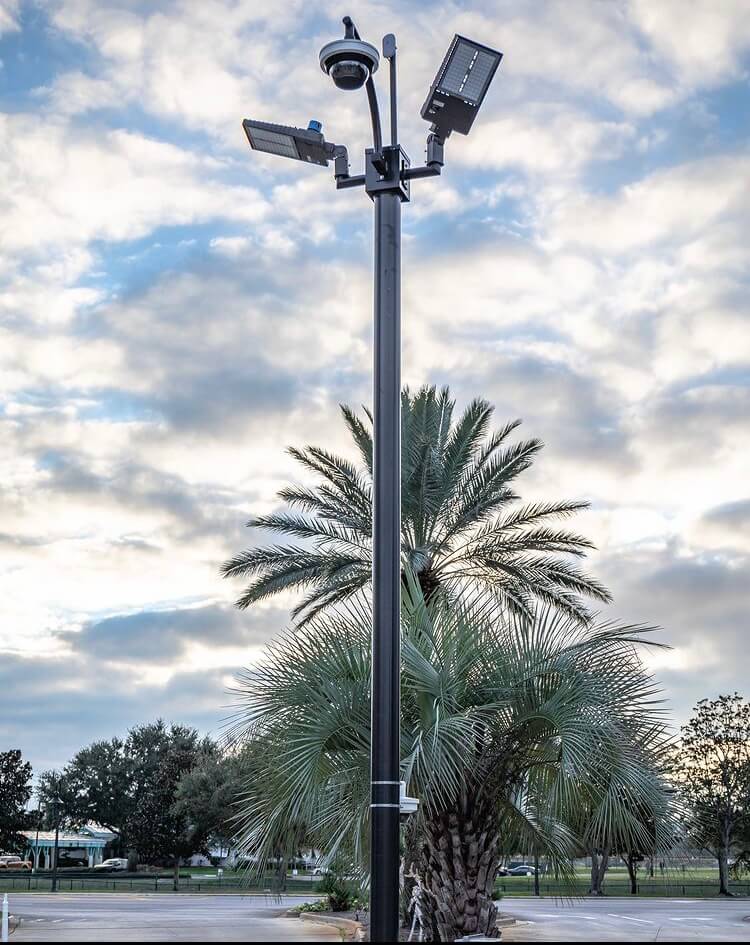

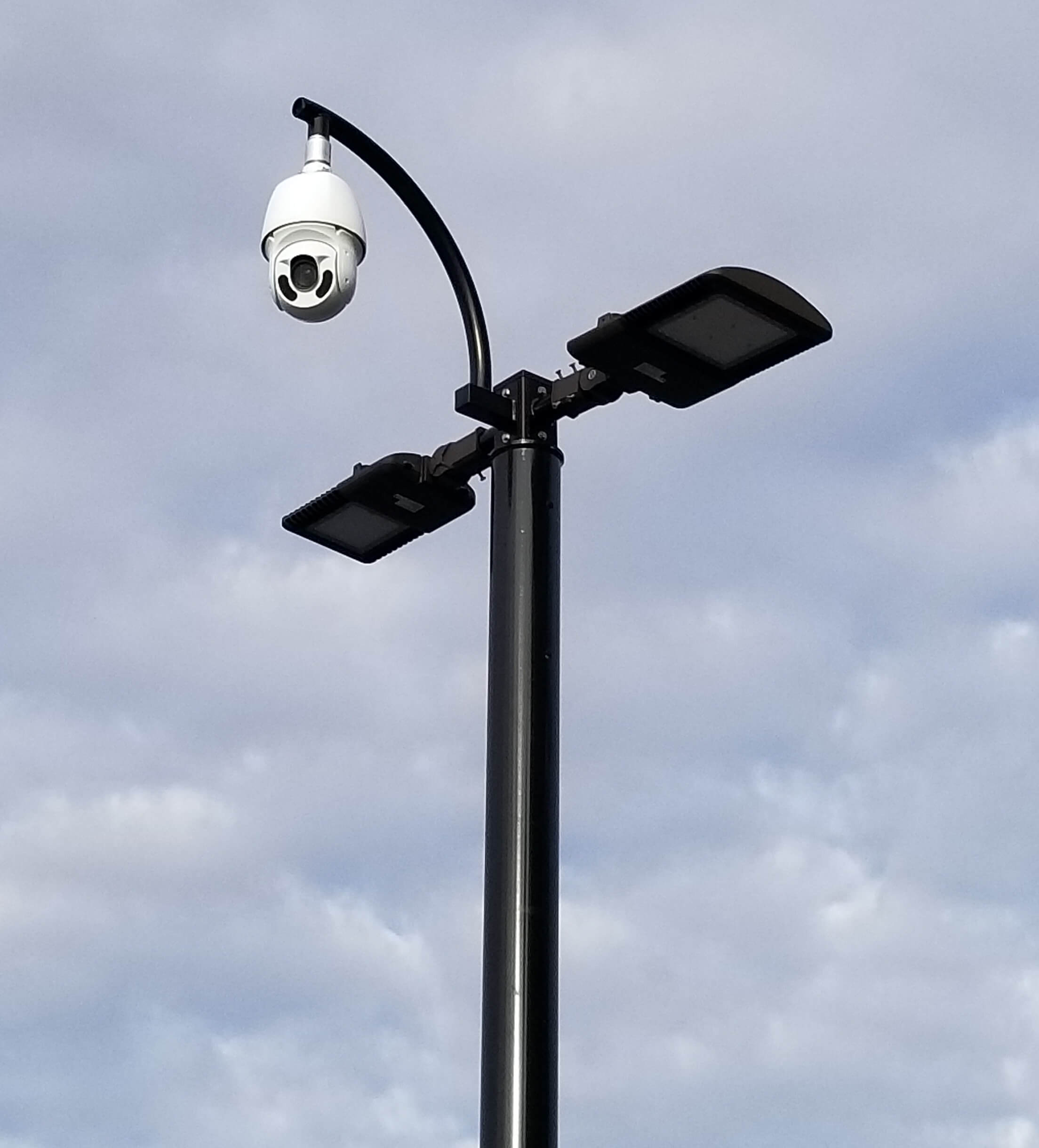

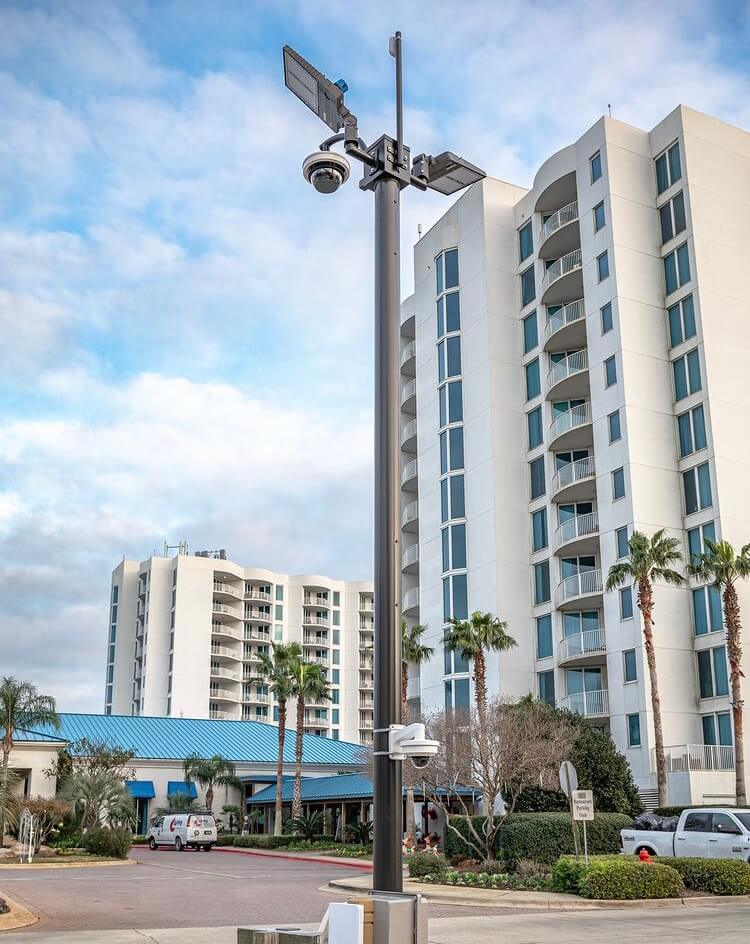

SteadyMax Pole with the Tenon Mount Pedestal and 2 lights & tenons and a PTZ Fly-out camera mount

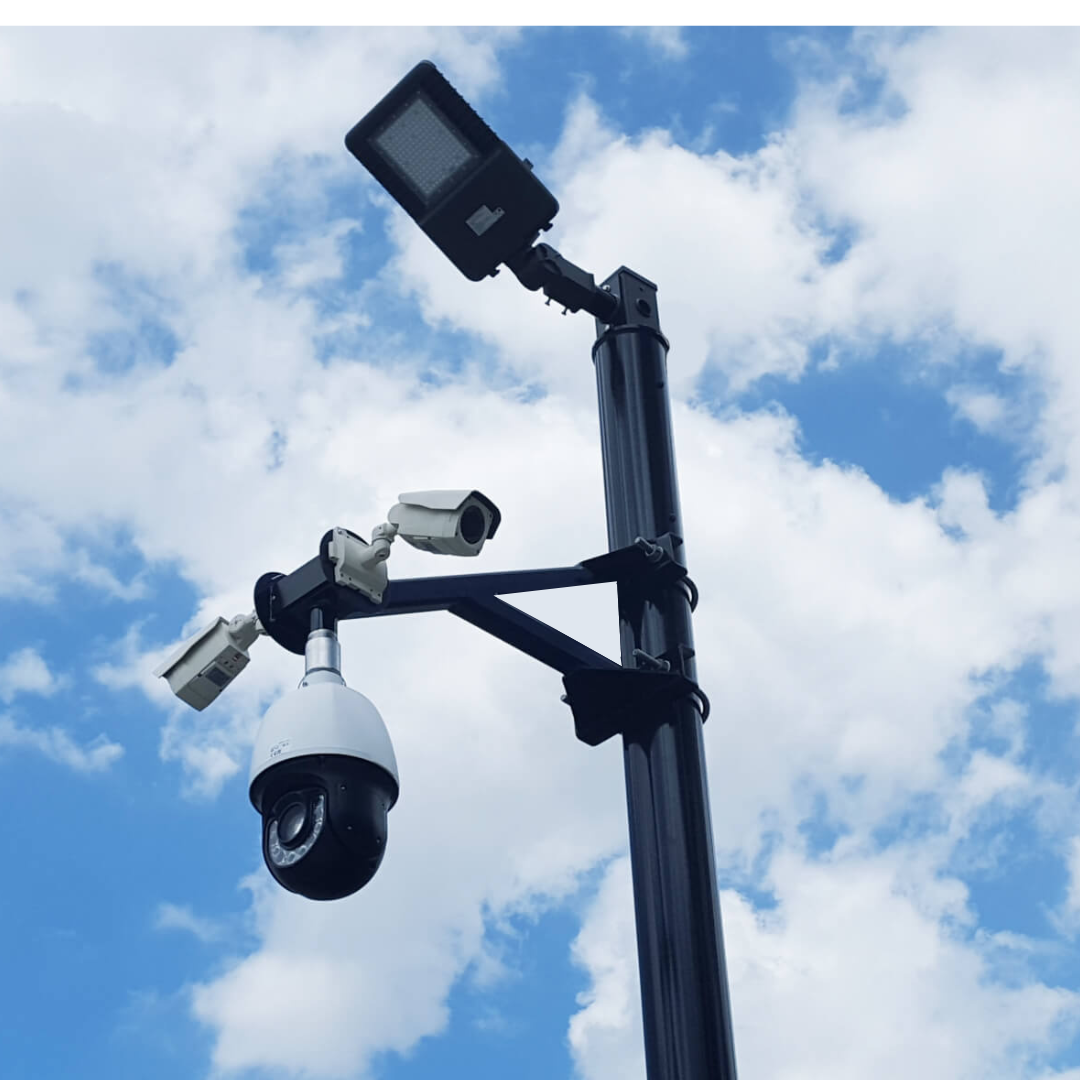

SteadyMax Pole with the 8x10 Mounting Platform on top using a PTZ Flyocer camera mount

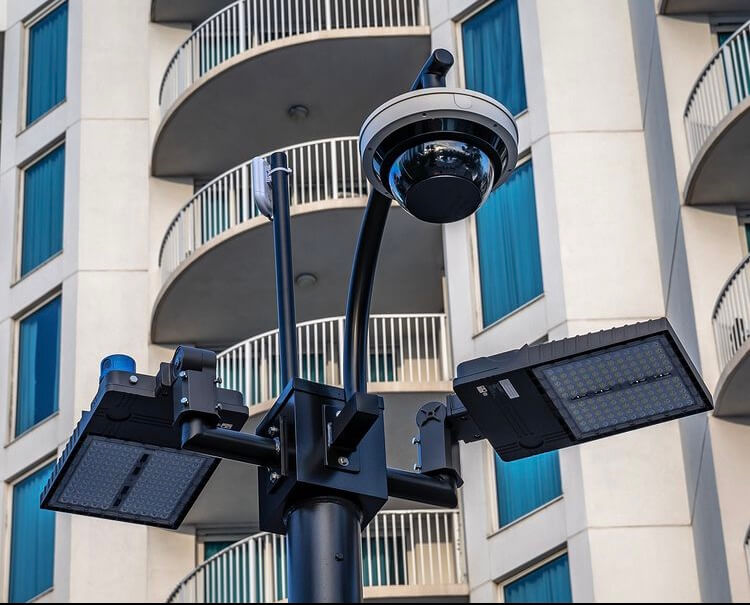

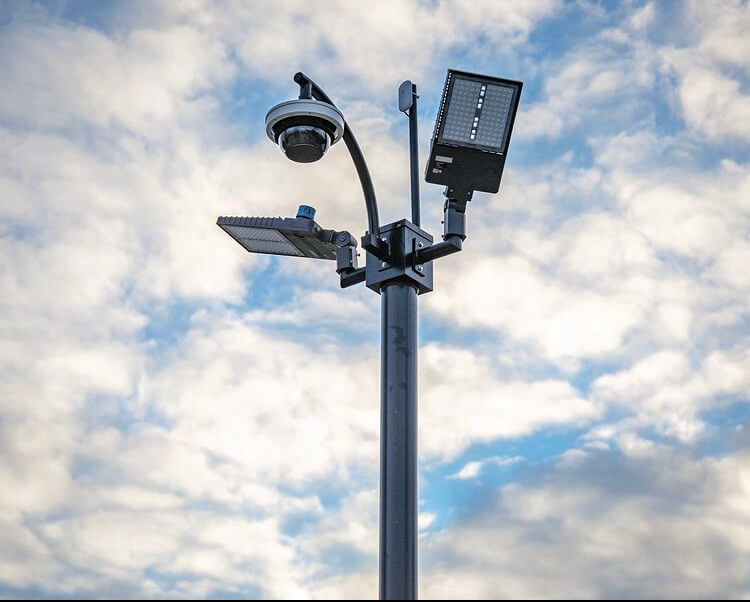

SteadyMax Pole with the Tenon Mount Pedestal and 2 lights & tenons and a PTZ Fly-out camera mount

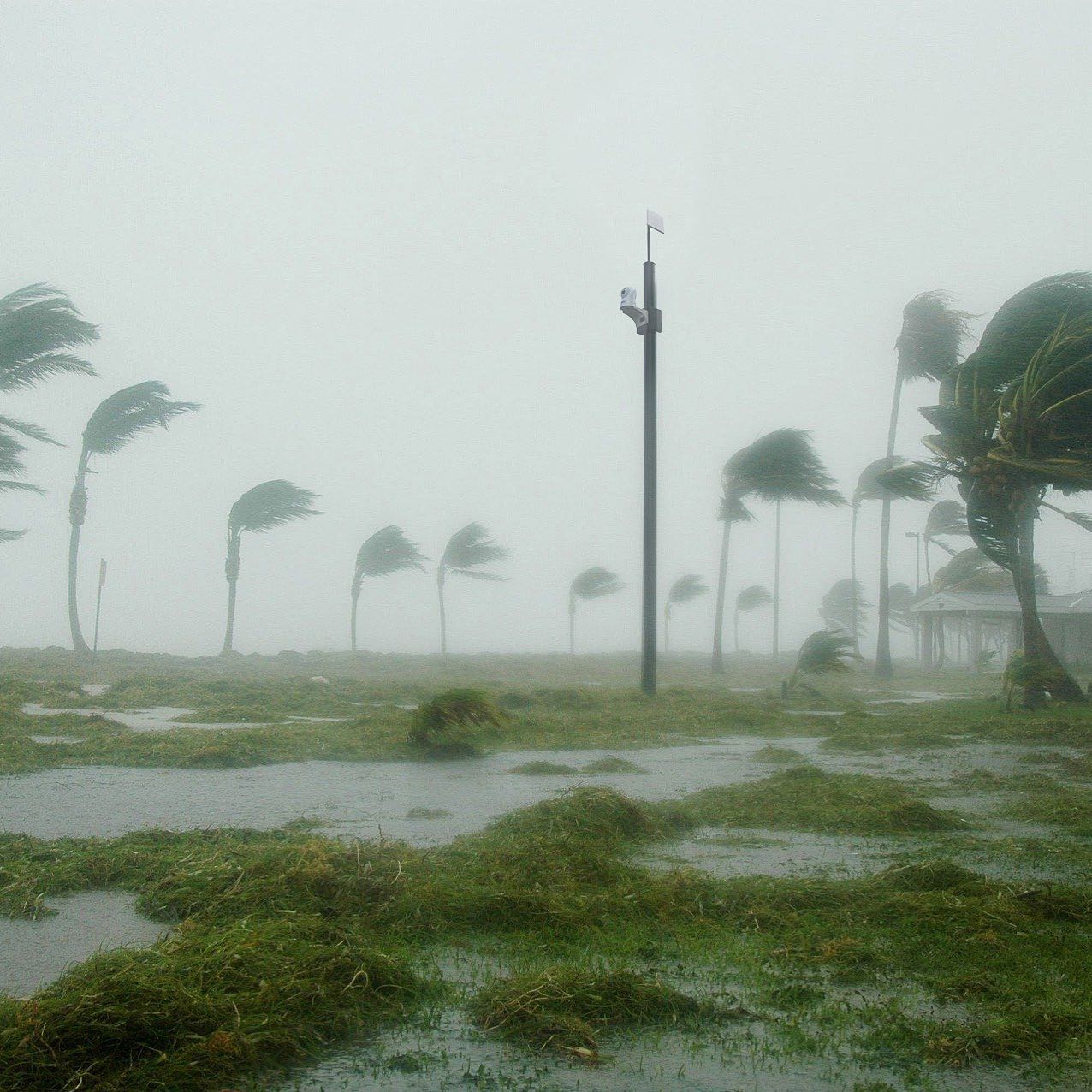

SteadyMax standing tall in a Florida hurricane

SteadyMax with Birdhouse Mounting Platform, Anttena Mast, Fly-Out Camera Mount, and LED Lighting

SteadyMax 12' Pole with the 8 x 10 Mounting Platform

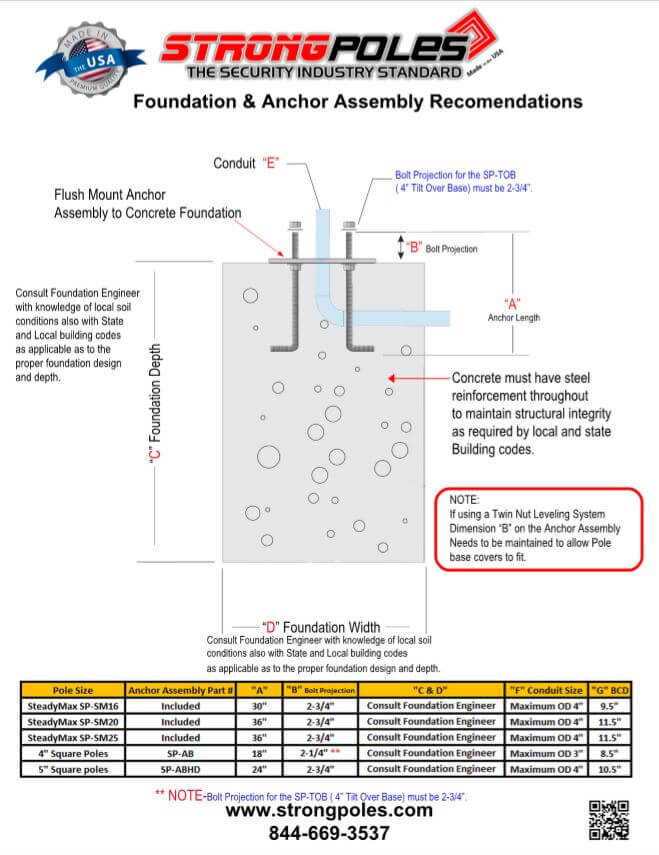

>> View Pole Foundation Guidelines & Recommendations Here <<



Anchor Bolts

1. StrongPoles recommends leveling shims in lieu of leveling nuts. No grouting is required with leveling shims.
2. Never use leveling nuts (common to light pole installers), the pole should be placed directly onto the foundation.

Steel Anchor Bolts conform to AASHTO M314-90 Grade 55. The threaded end will be galvanized a minimum of 10″ per ASTM A153 and contain a right angle hook at the unthreaded end.
